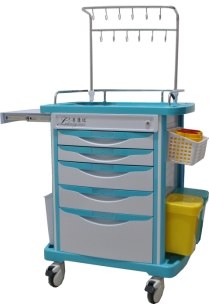

name | ABS Intravenous Ambulance | model | TC-ABS-39 |
pic |  |
Technical Specifications |
1 | Product Specification | 750*480*920mm |
2 | Packing specification | 750*530*930mm |
3 | Gross Weight | 45KG |
4 | Net Weight | 42KG |
5 | Drawer size | middle drawer | 500*410*120mm |
6 | Drawer size | Large drawer | 500*410*240mm |
7 | I.V. Infusion Stand | Elevator Route：400mm |
8 | Countertop size | 570*430mm |
9 | Sub-table size | 380*350mm |
10 | Side frame size | 330*180*150mm |
11 | Trash can size | 180*180*260mm |
12 | Sharps Box | Single-dose | 1L |
13 | Silent Wheel | diameter：100mm | 4 inch |
Functional Features |
1 | The body material is made of brand new high quality ABS particles, melted and injected by high temperature injection molding machine to the grinding tool molding |
2 | The structure of the body is assembled and molded as follows: table top, base plate, column, side plate, etc. |
3 | The table top adopts a new concept of integrated molding design The table top is equipped with stainless steel three sides of the fence, equipped with double rows of telescopic infusion rack, infusion rack can be placed on the drip infusion bag use, beautiful and easy to clean. |
4 | The columns are made of four plasticized steel materials to improve the weight of the car body and beautiful and durable. |
5 | The drawer adopts four-layer design, 3 middle drawers and 1 big drawer, the drawer panel is of the same color, which is convenient for the classification of different medicines, and the color of the drawer can be customized according to the needs of different colors, etc. The internal standard configuration of the drawer is 3*3 classification of the medication compartment inserts, which can be freely combined according to the size of the medication box, and the drawer is configured with linkage-type central lock, which can be locked on the 4 layers of the drawer, preventing the loss of medicines and guaranteeing the safety of medicines, etc. |
6 | Thickened load-bearing base plate with internal reinforcement design increases the stability and load-bearing properties of the vehicle and the safety of medicines. |
7 | The left side is equipped with a hidden sub-table, which can be pulled out when in use, making it easy for medical personnel to write records or place light injection supplies, etc. After use, it can be pushed into the body, making it easy to push and saving space. |
8 | The left side can be equipped with an optional data box, which is convenient for medical personnel to write rescue cases and display records of drug use. |
9 | The right side is equipped with a sharps box hanging frame, 2 yellow disposable sharps storage box is convenient for storing the needles and sharps used in the rescue. |
10 | On the right side, there are two classified garbage cans in yellow and blue colors, which are convenient for the medical staff to classify and store the medical garbage produced during the rescue. |
Configuration List |
NO. | item | Quantity/Unit |
1 | Infusion vehicle body | 1 vehicle |
2 | drawer | 5 |
3 | Pill Compartment Tablets | 30 pieces |
4 | Side Hanging Frames | 1 piece |
5 | Sharps Box 1L | 2 pcs |
6 | Trash can | 2 |
7 | Wheel | 4 |
8 | Infusion stand | 1 |
9 | Key | 2 |
