name | ABSIntravenous Ambulance | model | TC-ABS-38 |

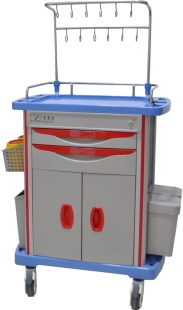

pic |  |
Technical Specifications |
1 | Product Specification | 750*480*920mm |
2 | Packing specification | 750*530*930mm |
3 | Gross Weight | 45KG |
4 | Net Weight | 42KG |
5 | Drawer size | small drawer | 500*410*80mm |
6 | Drawer size | Medium drawer | 500*410*120mm |
7 | Storage Cabinet Dimensions | Storage Cabinet | 500*410*440mm |
8 | I.V. Infusion Stand | Elevator Route：400mm |
9 | Countertop Use Size | 570*430mm |
10 | Sub-table size | 380*350mm |
11 | Side frame size | 330*180*150mm |
12 | Trash can size | 180*180*260mm |
13 | Sharps Box | Single-dose | 1L |
14 | Silent Wheel | diameter：100mm | 4 inch |
Functional Features |
1 | The body material is made of brand new high quality ABS particles, melted and injected by high temperature injection molding machine to the grinding tool molding |
2 | The structure of the body is assembled and molded as follows: table top, base plate, column, side plate, etc. |
3 | The table top adopts a new concept of integrated molding design The table top is equipped with stainless steel three sides of the fence, equipped with double rows of telescopic infusion rack, infusion rack can be placed on the drip infusion bag use, beautiful and easy to clean. |
4 | The columns are made of four plasticized steel materials to improve the weight of the car body and beautiful and durable. |
5 | The drawer adopts three-layer design, one small drawer and one medium drawer, the drawer panel is of the same color, which is convenient for different drugs to be classified and placed, and the color of the drawer can be customized according to the needs of different colors, etc., the internal standard configuration of the drawer is 3*3 classification of the drug compartment inserts, which can be freely combined according to the size of the box, and the drawer is configured with linkage-type central locking, which can be used to lock the 2-layer drawer to prevent the drugs from being lost and to guarantee the safety of the drugs, etc. |
6 | The bottom plate of the car body adopts the thickened load-bearing bottom plate, and there are reinforcement ribs inside the design, which increases the stability and load-bearing of the car body and the safety of medicines. |
7 | The left side is equipped with a hidden sub-table, which can be pulled out when in use to facilitate the medical staff to write records or place light injection supplies, etc. After use, it can be pushed into the body, which is easy to push and saves space. |
8 | The left side can be equipped with an optional data box, so that the medical staff can write rescue cases and display the records of drug use. |
9 | The right side is equipped with a sharps box hanging frame, 2 yellow disposable sharps storage box is convenient for storing the needles and sharps used in the rescue. |
10 | On the right side, there are two classified garbage cans in yellow and blue colors, which are convenient for medical staff to classify and store the medical garbage produced during the rescue. |
Configuration List |
NO. | ITEM | Quantity/Unit |
1 | Infusion vehicle body | 1 vehicle |
2 | drawer | 5 |
3 | Pill Compartment Tablets | 30 pieces |
4 | Side Hanging Frames | 1 piece |
5 | Sharps Box 1L | 2 pcs |
6 | Trash can | 2 |
7 | Wheel | 4 |
8 | Infusion stand | 1 |
9 | Key | 2 |
