1. Product composition
The product consists of a bed, five imported Danish Linak DC motors, a drive box, a touch keyboard and a color touch 10.2-inch LCD screen.
The product is equipped with a battery, and the product can still work when there is no external AC power supply.
2. Product Four functions:
Motion control function:
Back lift; (The backplane is self-extended when the back is raised, reducing the pressure on the patient's back and abdomen, and the screen is displayed with an Angle)
Leg lifting; (Screen with Angle display when lifting leg)
Back and leg linkage
Vertical lift; (Up and down screen with high and low size display)
Positive tilt; (Screen with Angle display when tilted)
reverse tilt; (Screen with Angle display when tilted)
Turn over left and right (turn over with Angle display)
Manual CPR (quick back leveling)
Underbed lighting
guardrail key lock function
Emergency stop switch
Action management functions:
One click CPR bit
One click special bit
One click away from the bed
One click doctor check bit
One click heart seat
One-click stop bit
Weight management function
weigh
Zero clearing
Ignore change
Save weight data
Delete the saved weight data
Out-of-bed alarm
Monitoring weight change function
Set the allowable range of weight change and display the curve of weight change. When the limit is exceeded, the system generates an alarm to remind the medical staff to deal with the incident and prevent the accident from worsening.
3,Product characteristics
Use touch keyboard to replace traditional mechanical keys, such as "film switch", "button" and so on. It solves the problem that the traditional mechanical keys fail due to the limited service life and force.
It has monitoring function to prevent accidents from worsening.
Product technical parameters:
A, Size:
The whole bed size: length 2350mmX width 1000mmX height 570-860mm
Bed size: Length 1950mmX width 840mm,
Back lift 0-70°±5°, leg lift 0-40°±5°, overall rise 570-860mm, front and back tilt 0-12°±2°, left turn over 0-32°±2°, right turn over 0-32°±2°
B,Electrical parameter
Max power: 130W
Power supply: Voltage AC220V or 110V, frequency 50Hz or 60Hz (according to customer demand)
Output voltage: DC24V
Battery: Capacity 12V1.3AH, quantity 2 batteries
C. Weight
The maximum weight of the bed body is 240kg, the weight display resolution is 0.1kg.
3, product use environment
1. General office environment;
2, temperature: -10℃~40℃;
4, product installation

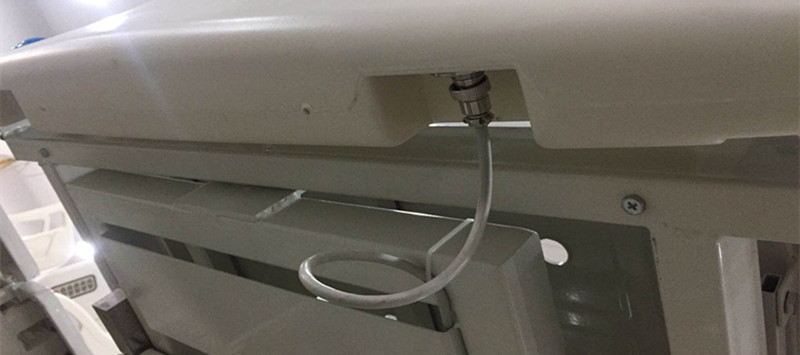

When the power switch is off, install and plug the bed end board into the bed body, connect the bed end cable to the head of the bed (as shown in the figure), connect the AC power, press the power button on the right side of the screen, the LCD screen will light up, and the product can be used normally.
5. Product use
1, color touch screen operation, function selection, icon meaning

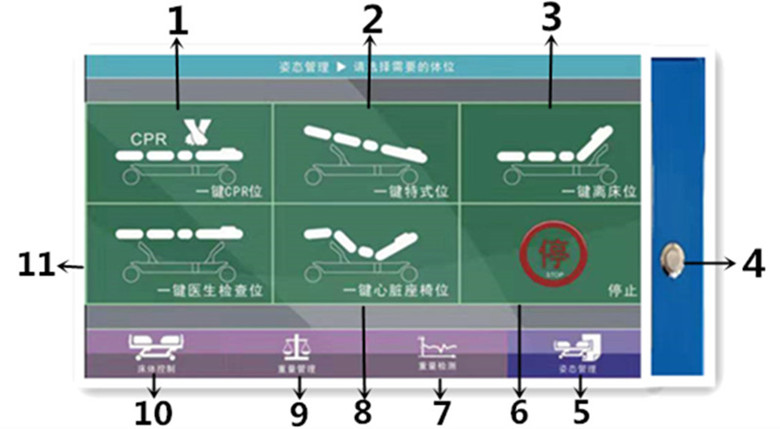

In the lower part of the color touch LCD screen, there is an icon as shown in the figure, the meaning of the icon is as follows:
No. | Name | Discription |
（1） | Electric CPR function | Keep your back flat, your legs flat, and your bed on the lowest floor |
（2） | One click special bit | Flat back, flat legs, bed overall reverse tilt |
（3） | One click away from the bed | Raise your back, lower your legs, and lower your bed to the lowest level |
（4） | Power switch | Press the power button to start the power supply |
（5） | Attitude management | Under this interface, various bed body positions can be selected |
（6） | Stop key | Touch this key to stop working |
（7） | Monitoring weight change | On this screen, you can set the allowable weight range. The system detects that the weight changes beyond this range and generates an alarm. Plot the weight change |
（8） | One click heart seat | Back legs raised to the highest, bed overall positive tilt |
（9） | Weight management | In this interface, you can measure the weight and save and query the weight data |
（10） | Bed control | Under this interface, the back, legs and bed can rise and fall as a whole |
（11） | One click doctor check bit | Keep your back flat, your legs flat, and your bed at its highest level |
In the "standby" system for 5 minutes, the color touch screen is turned off, and the power supply is automatically turned off. If you need to restart the power supply, press the power button.
When the standby LCD is in the black screen, touch any position of the LCD and release it, and the LCD will light up
Bed control function operation interface icon meaning

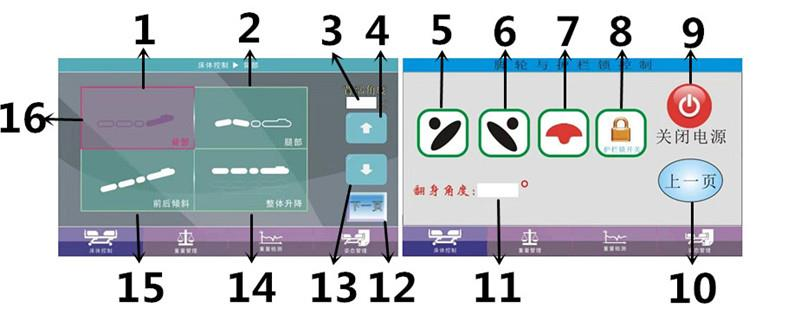

Under the bed control interface, the icon of the operation area is shown as the figure.
No. | Name | Description |
（1） | back | Back lift |
（2） | leg | Leg lift |
（3） | Angle display | Show the back, legs, front and back tilt degree, the overall lifting height |
（4） | Multiply key | Touch this icon to make the selected pose move in the direction of increase, release to stop (this icon is not touched) |
（5） | Left bank | Touch this icon and the bed will tilt to the left |
（6） | Right bank | Touch this icon and the bed will tilt to the right |
（7） | Underbed light | Touch this icon, and the "ON" sign will appear on the screen. At this time, the light under the bed will turn on. Wait 30 minutes for the light under the bed to automatically turn off and the power will automatically turn off |
（8） | Guard rail lock | When you touch this icon, a lock sign appears on the screen, and the guardrail buttons on the left and right sides of the bed are out of order |
（9） | power | Touch this icon to turn off the entire power supply |
（10）（12） | Page switching | Left and right turn and bed body control page switch |
（11） | Angle display | Left and right bed Angle display |
（13） | Decrease key | Touch this icon to make the selected posture move in the decreasing direction, and release to stop (this icon is touched) |
（14） | Complete lift | Touch this icon to make the selected pose move in the direction of increase, release to stop (this icon is not touched) |
（15） | Tilt forward and backward | The bed is tilted back and forth |
（16） | Selected attitude | The pose is selected and responds to the "add key" or "reduce key" action |
The steps are as follows:
Select a gesture to control ----- Touch the gesture icon that you want to control. The figure is green. On the LCD, only one function interface is selected at a time, and the icon is surrounded by red.
Control attitude change -------------- if touch "increase" or "Decrease" button does not release, the attitude will change, the attitude data keeps changing, indicating the current attitude, touch release, the attitude will stop changing.
3、Weight function operation: Weight management interface introduction

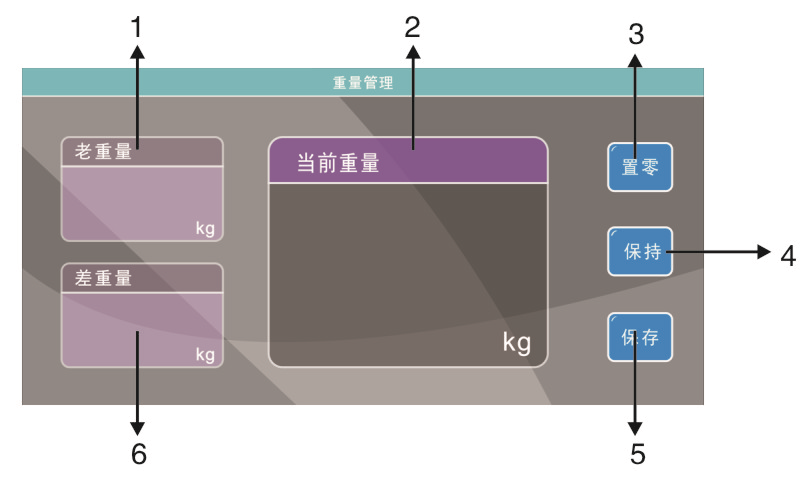

The weighing section of the weight management interface is shown in the figure
No. | Description |
（1） | Saved weight |
（2） | Current weight |
（3） | Clear current weight |
（4） | Ignore weight change |
（5） | Save current weight |
（6） | The difference between the old weight and the current weight |
Weight management interface operation description
The function of the "hold" key is: when the items are placed or removed from the bed, the weight on the bed will change, and the weight of the patient will become lighter or heavier when the weight is measured, and the actual weight of the patient does not change. In order to eliminate this phenomenon, the "hold" key is set, after taking out or placing the item, touch and release the "hold" key, a confirmation interface appears, after confirming, the system will automatically remove the changed part of the weight to ensure that the patient's weight data remains unchanged.
4、Weight detection change function operation
Touch the select button to change the position of the warning line, so as to set the allowable weight change range. The system measures the weight every 5 minutes, calculates the change value of the weight, and draws a graph. If the weight change value exceeds the set value, the system generates an alarm.
Touch keyboard operation and keyboard function introduction

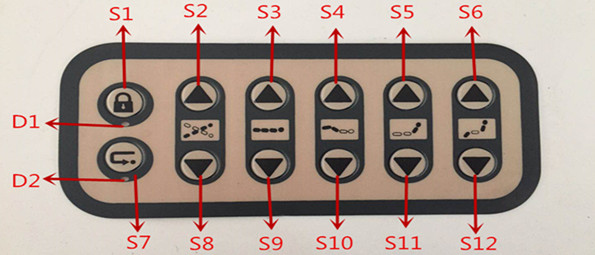

This product is equipped with a keyboard to control the posture of the bed on both sides of the guardrail. The keyboard icon is shown as follows:
The key functions are as follows:
S1 - Power on button
S2 - Positive tilt key, control the head of the bed up, tail down
S3-- Vertical rise button, control the vertical rise of the bed
S4-- Leg lift button, control leg lift
S5-- Back rise button, control back rise
S6- Back and leg linkage lift button, control the back and legs rise at the same time
S7- Flattening key, while the back and legs drop and the bed also vertical drop, restore factory Settings
S8- Reverse tilt key, control the head of the bed down, the tail up
S9-- Vertical drop key, control the bed vertical drop
S10---- Leg drop button, control leg drop
S11---- Back down button, control the back down
S12-- Back and leg linkage drop button, control back and leg drop at the same time
D1-- Lock indicator, off indicates "power off"; On: The state is On.
D2---- AC power indicator. If on, the AC power is connected
Keyboard use
1. Switch on the AC power supply, press the S13 key, the D1 indicator is on, and the power supply is in the "power on state".
2, in the unlocked state, touch each key icon, then the system will produce the corresponding response.
3, within 5 minutes, the keyboard has no effective touch, it automatically enters the micro-power state. Does not respond to other key events except the Power button.
4, guardrail keyboard in the micro power consumption state, if you want to operate the keyboard, you need to touch the "power key" and then release, if the system is in the "power on state", the power indicator light, then you can normally operate the keyboard.
