Technical Parameters:
1. The backrest can be adjusted to an angle of 0-60°±5°.
2. The height adjustment range: 535-835 mm.
3. Bed size: 1920*640*535/835 mm.
4. The bed is equipped with an oxygen tank holder and locking switch.
5. The rescue car adopts advanced international central braking system, stable and reliable, with directional wheel device.
This manual rescue car is used in hospital emergency rooms for rescue, made of imported PE materials, hydraulic assistant system, and lifting mechanism using a screw rod system. It also adopts advanced international central braking system, with directional wheel device to ensure stable and reliable movement. ABS dynamic protective barrier design is convenient for patients. Dynamic backrest lifting design, with oxygen tank holder installed under the bed frame.
The rescue car has the functions of direction, body tilt, and lifting.
The rescue car is more humanized and idealized to meet the needs of medical staff.

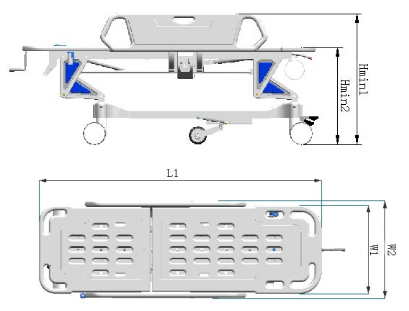

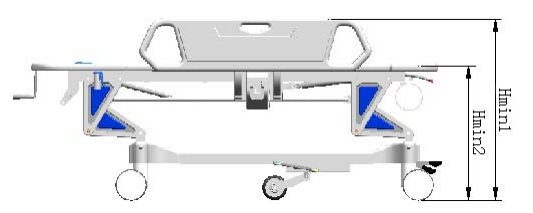

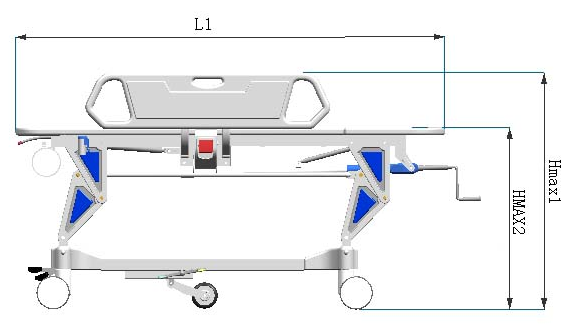

imension Parameters Table
NO. | Category | Number |
1 | L1 | 1920mm |
2 | W1 | 640mm |
3 | W2 | 600mm |
4 | Hmax1 | 1075mm |
5 | Hmax2 | 835mm |
6 | Hmin1 | 785mm |
7 | Hmin2 | 535mm |
8 | LT | 65° |
Body height adjustment range: 535-835 (mm)
